WIRELESS LOGGING STATION LR8410

Wireless Multi-channel Data Logger Captures Up to 105 Data Points via Bluetooth®

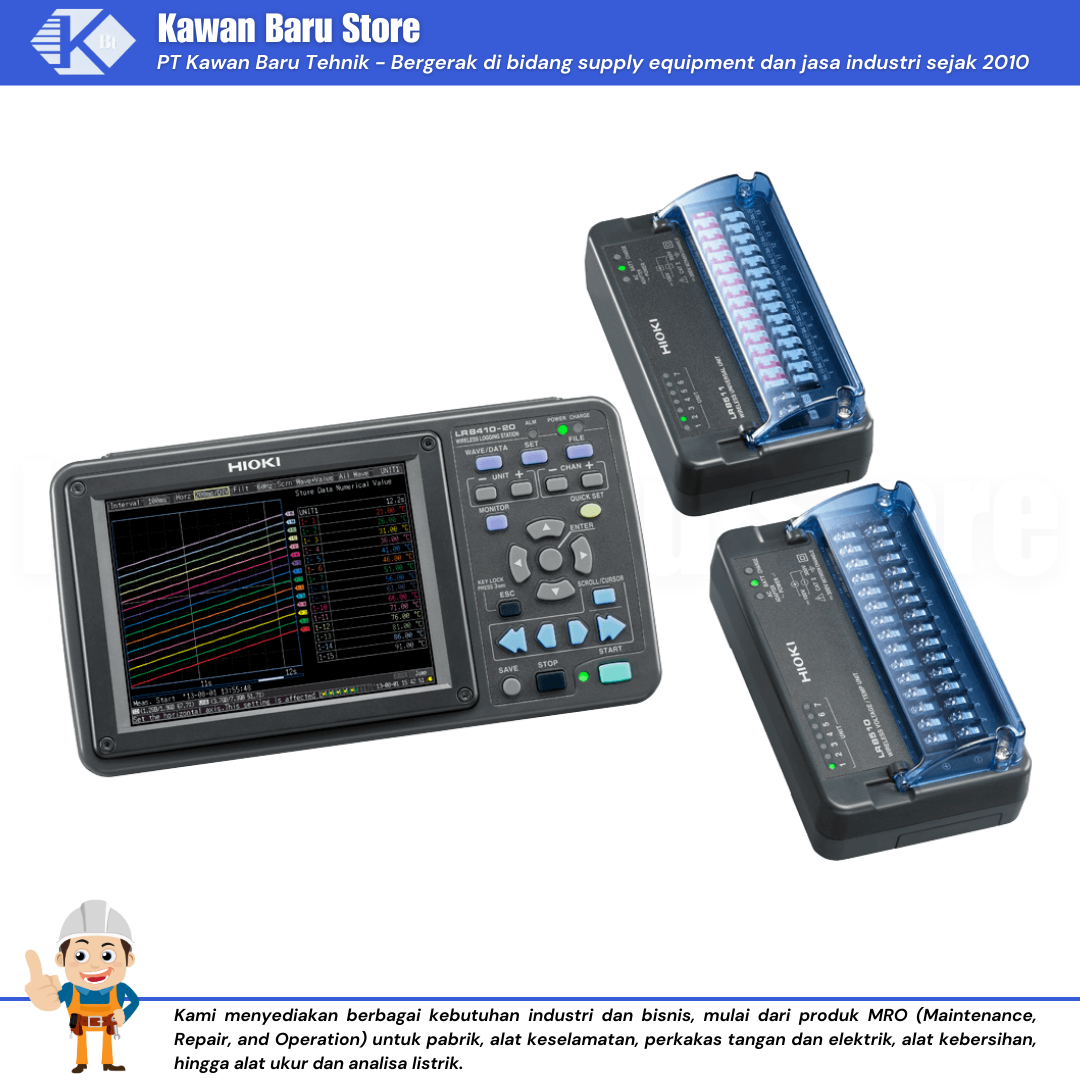

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The LR8410-20 is an innovative wireless logging system capable of capturing up to 105 channels of data wirelessly using Bluetooth® wireless technology.

Dapatkan Penawaran

Diskusi dan Tanya Harga
Hubungi CS

Key Features

  • Capture logging data using Bluetooth® wireless technology.
    Install logging modules in hard-to-reach locations.
  • Measurement units have built-in buffer memory so that measurement data can be saved if communication is temporarily disrupted.
  • Choose an input unit based on the parameters you wish to measure (15-channel and 2-channel units are available)
  • Easily add up to 7 input units wirelessly to keep your environment free of tangled wires (*2)
  • 100 msec simultaneous sampling across all channels using rapid scanning method
  • Quick Set guide makes configuration a breeze
  • Can receive data from LR8410 Link compatible products (Ver. 1.40 or later)
  • *1:Over line-of-sight distances of up to 30 meters. The presence of obstructions may shorten this range. In addition, radio wave intensities, which are indicated with the antenna-like indicators, vary depending on units even while these units are operating in the same environment.
  • *2:For a total of up to 105 channels when using 15-channel units.

Basic specifications

Accuracy guaranteed: 1 year
No. of measurement channels Max. 105 ch (use 7 units of LR8510 or LR8511)
One or more LR8510 or LR8511 measurement modules are required. Main unit can control up to 7 modules with Bluetooth® wireless technology, mix and match modules as needed
Pulse, digital input [Pulse totalization] [Rotation count] Not available
Recording intervals 100 ms(*2), 200 ms to 1 hour, 16 selections (All input channels are scanned within each recording interval.)
(*2) Setting not available when the thermocouple burnout detection setting is on
Data storage Internal memory: 8 M-words, Data storage media: SD memory card or USB memory stick (Only data recorded to a genuine HIOKI SD memory card is guaranteed)
Interface LAN: 100BASE-TX, Functions: Data acquisition using bundled software or PC commands, FTP server, FTP client, HTTP server function, or E-mail system
USB: USB 2.0 series mini-B receptacle ×1, Functions: Data acquisition using bundled software or PC commands, Transfer data from the SD memory card to a PC via USB drive mode

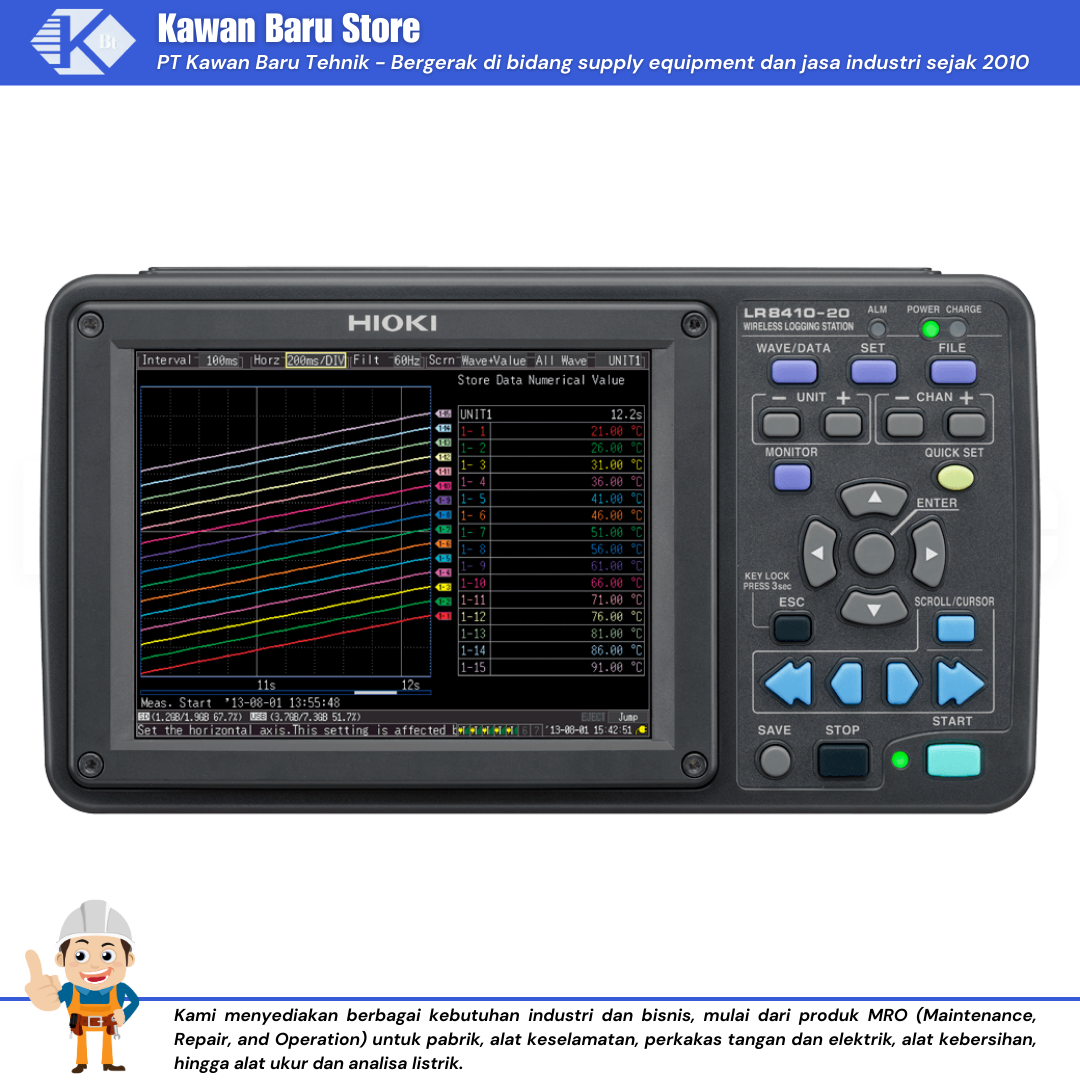

Display device 5.7 inch TFT color liquid crystal display (640 × 480 pixel)
Functions Save waveform data in real time to the SD memory card or USB memory stick, Numerical value calculations, Waveform calculations, 4ch alarm output (not isolated, common ground), and others
Power supply [AC adapter] Using the AC adapter Z1008 (100 to 240 V AC, 50/60 Hz), 45 VA Max. (including AC adapter), 15 VA Max. (exclusive of AC adapter)
[Internal battery] Using the Battery pack Z1007 (optional accessory), 3 hours of continuous use (at 23 ˚C reference data), 7 VA Max.
[External power] 10 to 28 V DC, 15 VA Max. (Please contact your HIOKI distributor for connection cord)
Dimensions and mass 230 mm (9.06 in) W × 125 mm (4.92 in) H × 36 mm (1.42 in) D, 700 g (24.7 oz) (excluding Battery pack)
Included accessories Instruction manual × 1, Measurement guide × 1, SD memory card (2GB) Z4001 × 1, CD-R (data collection software “Logger Utility”) × 1, USB cable × 1, AC Adapter Z1008 × 1

Combination status with LabVIEW or MATLAB script

Compatible models LabVIEW MATLAB script
LR8410-20 OK N/A
