KARCHER High-pressure washer HD 10/25-4 S Plus 1.286-960.0

The HD 10/25-4 S Plus cold water high-pressure cleaner impresses with high performance and quality. Assistance systems and Vibrasoft rotary nozzle designed with ergonomics in mind.

Dapatkan Penawaran

Diskusi dan Tanya Harga
Hubungi CS

Order number: 1.286-960.0

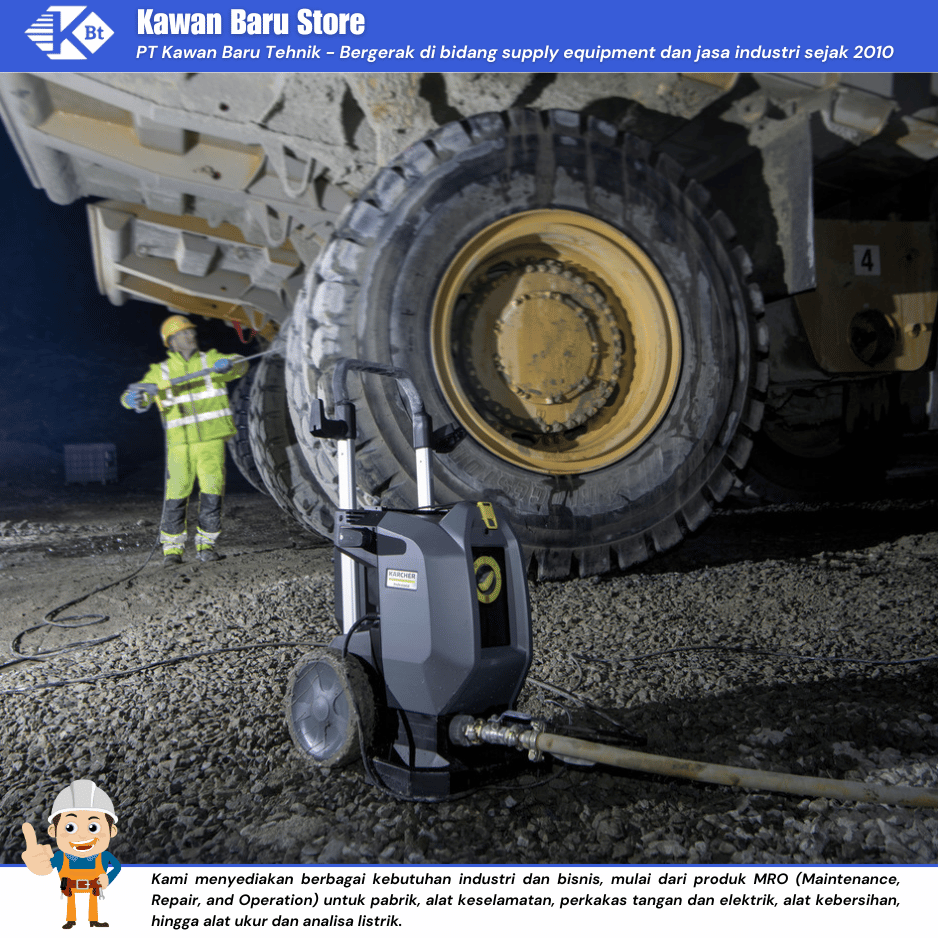

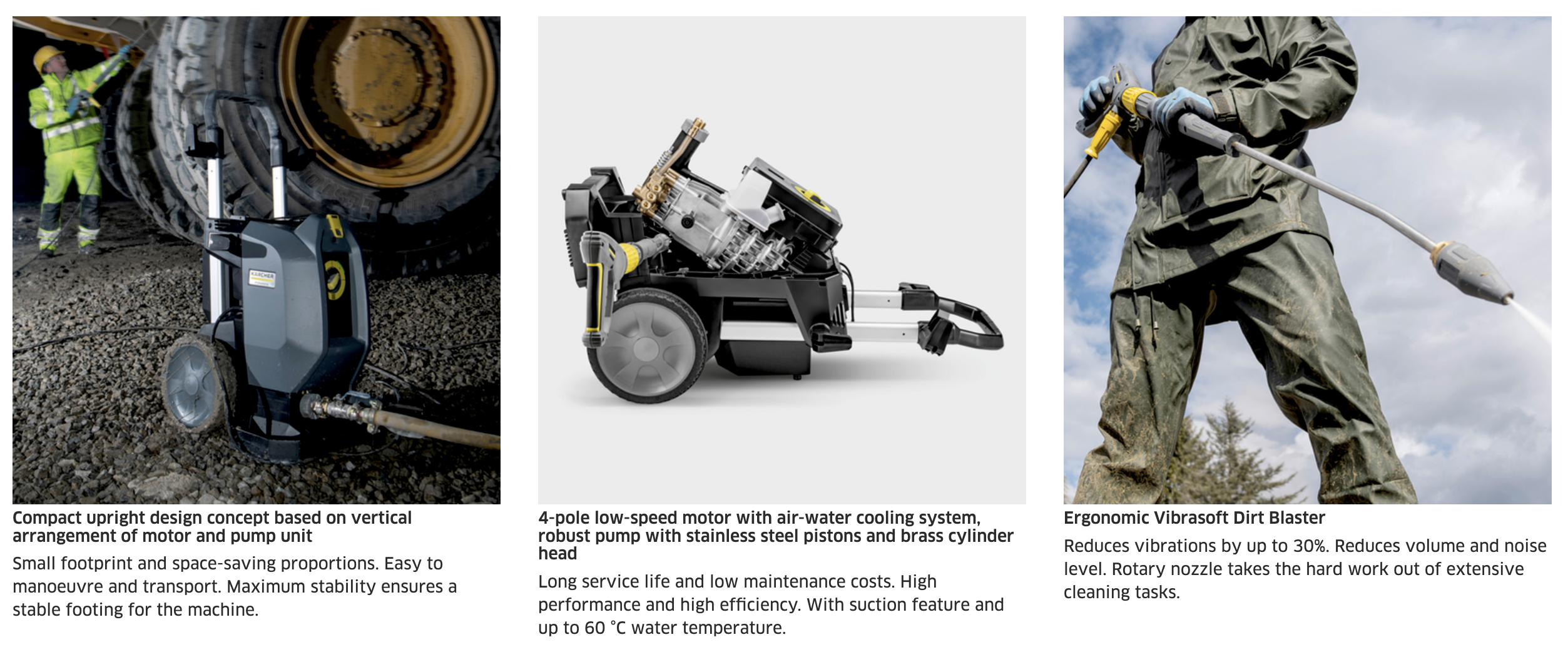

The HD 10/25-4 S Plus cold water high-pressure cleaner is the ideal machine for ergonomic and user-friendly operation. The Kärcher EASY!Force Advanced trigger gun makes it comfortable to use without any holding force. Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun. By reducing the pressure this way, users can react quickly to delicate surfaces – without having to change the entire nozzle. The Vibrasoft rotary nozzle also significantly reduces vibrations on the spray lance. Assistance systems and an LED status display increase the user-friendliness. Carefully selected materials ensure the premium quality continues inside the Super Class machine. A hard-wearing wobble pump, stainless steel pistons and brass cylinder head work in partnership with a 4-pole low-speed motor with air-water cooling system. Integrated frame carriers made from aluminium form a lightweight yet robust chassis, making crane loading an option. For a compact and portable design, the motor and pump unit is mounted vertically in an upright arrangement. The machine also features accessory storage in the form of a stowage compartment and adjustable hooks.

Features and benefits

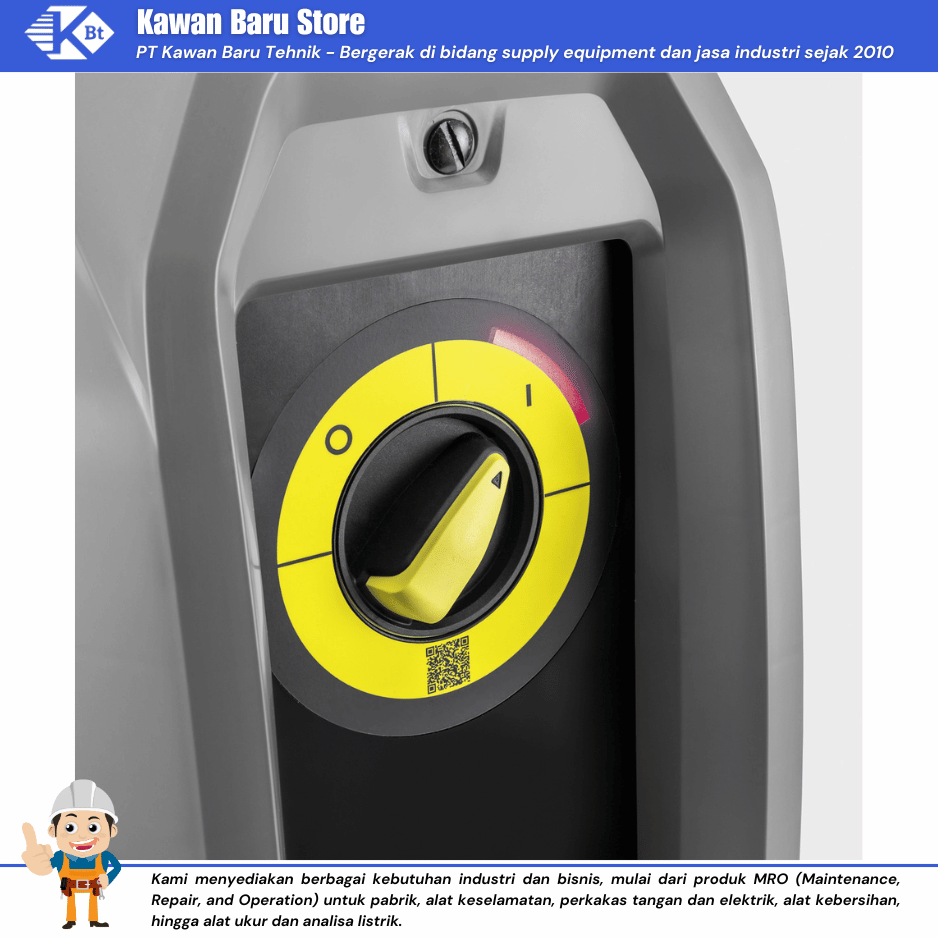

Assistance systems and LED status display
 Integrated electronics system for machine monitoring.
Automatic switch-off in case of low voltage range or overvoltage.
Switches off in case of leaks or phase failure.
Intelligently designed service concept facilitates quick operations on site

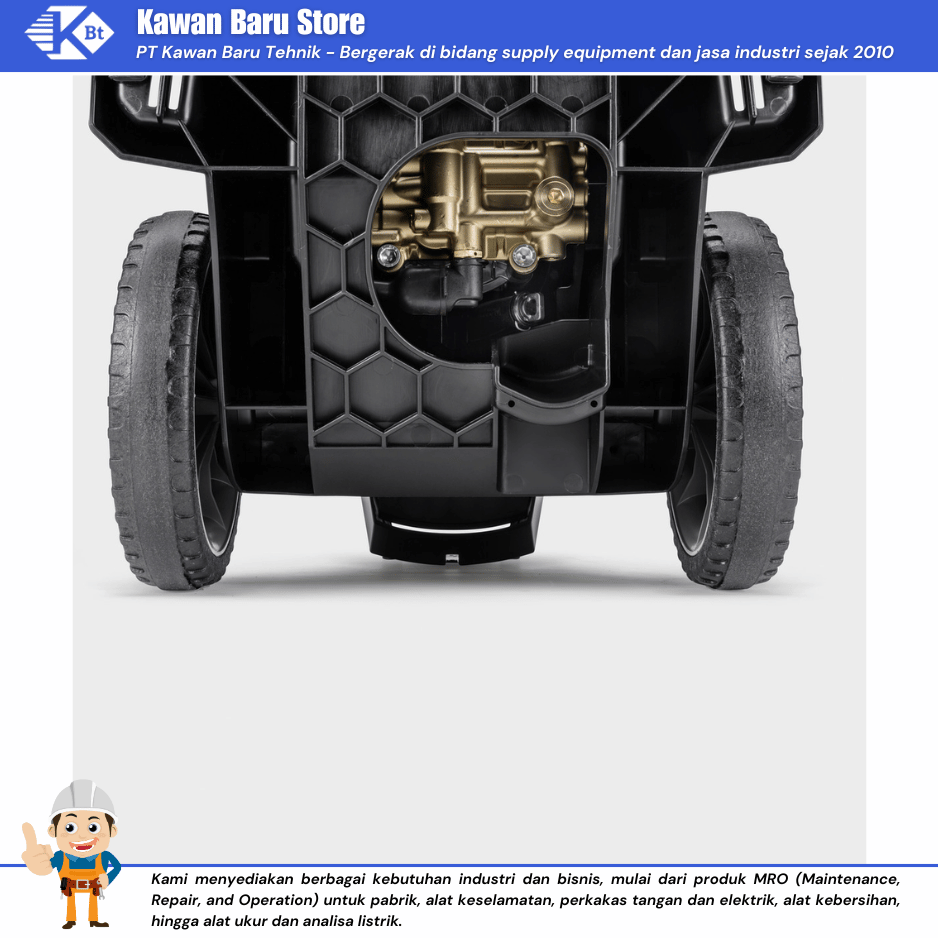

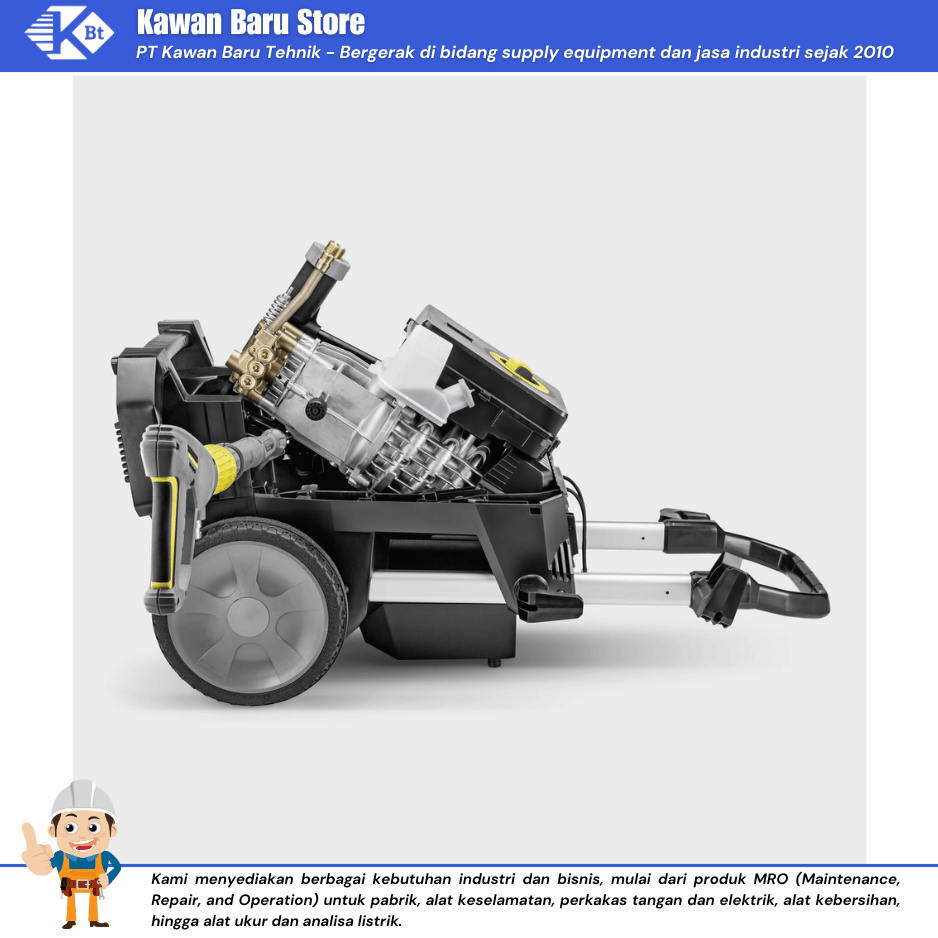

 Swivelling pump head.

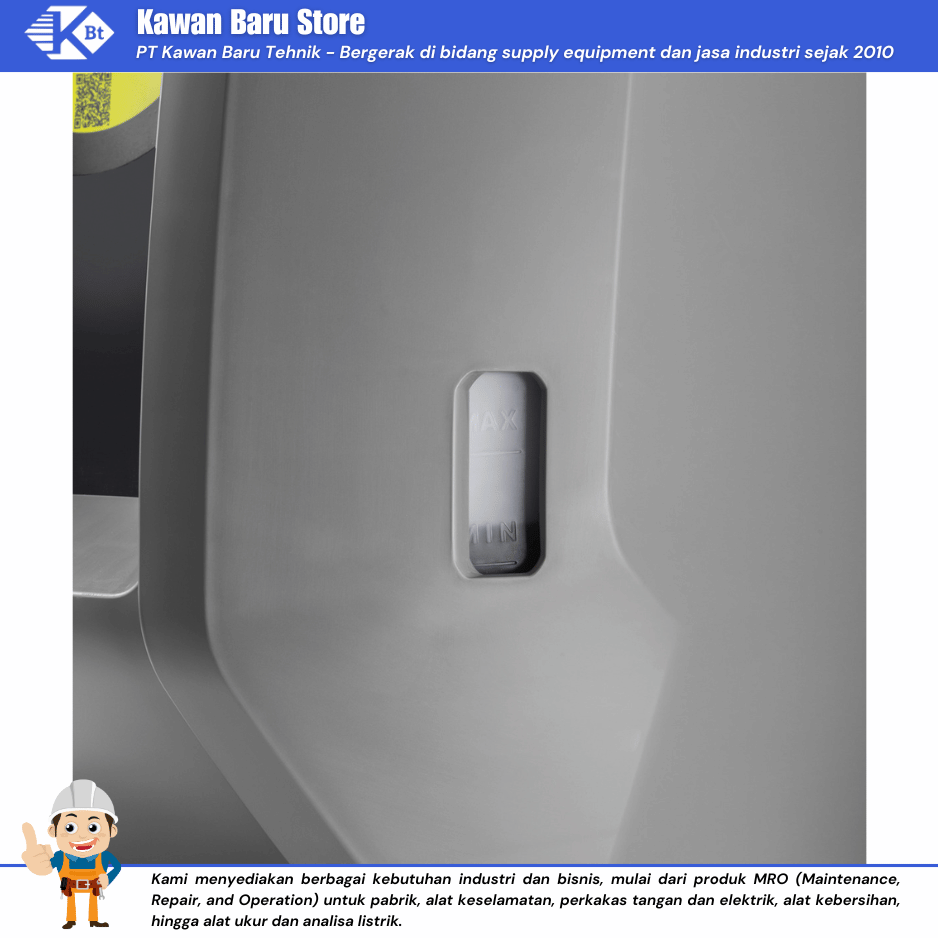

Convenient oil fill level display and oil drain hole integrated in the chassis.
Modular construction, comprising pump, motor and control cabinet.
Wide-ranging accessories with EASY!Lock
Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
EASY!Force Advanced for fatigue-free work without any holding force.
Rotating 1050 mm stainless steel lance.
Extensive range of accessories and attachment kits

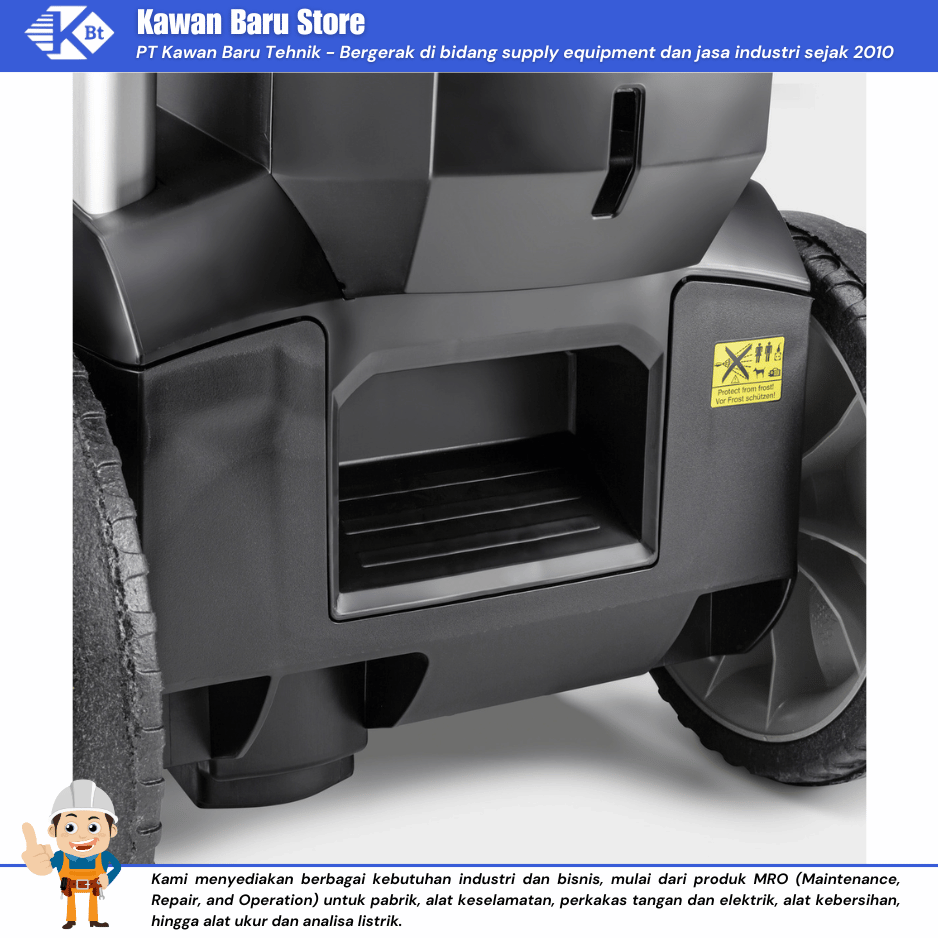

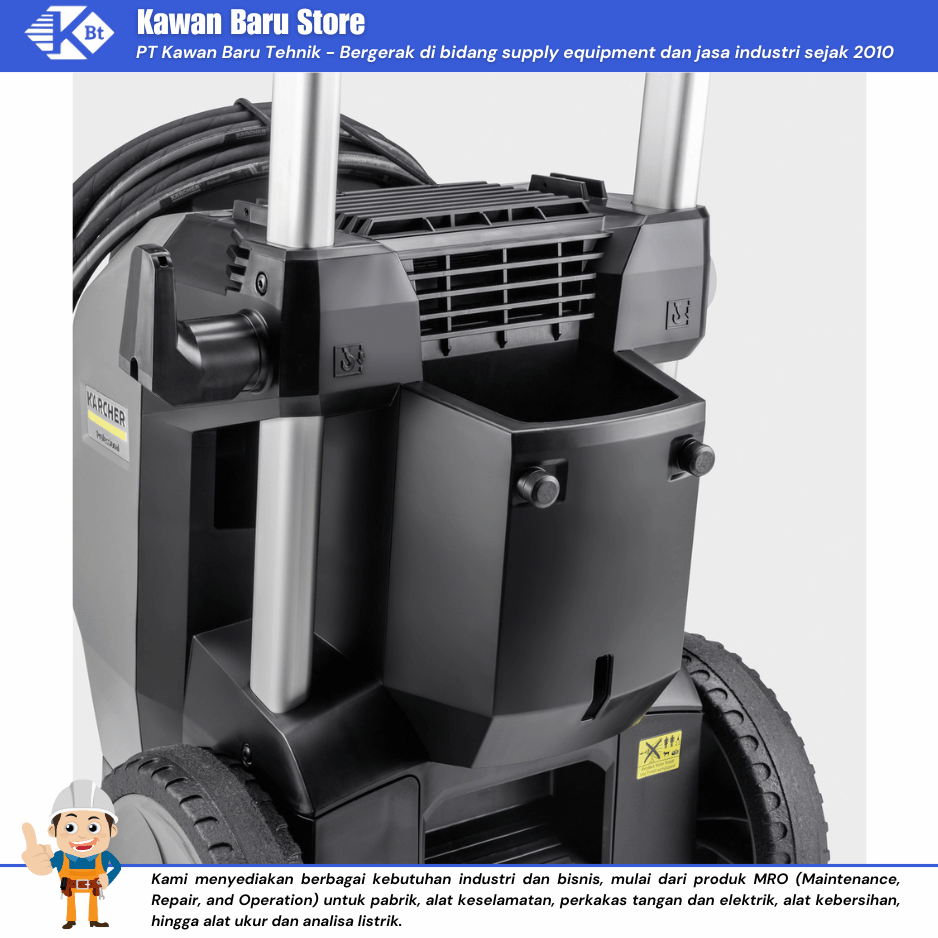

 Stowage compartment.
Adjustable hooks, e.g. for storing second lance or electric cable.

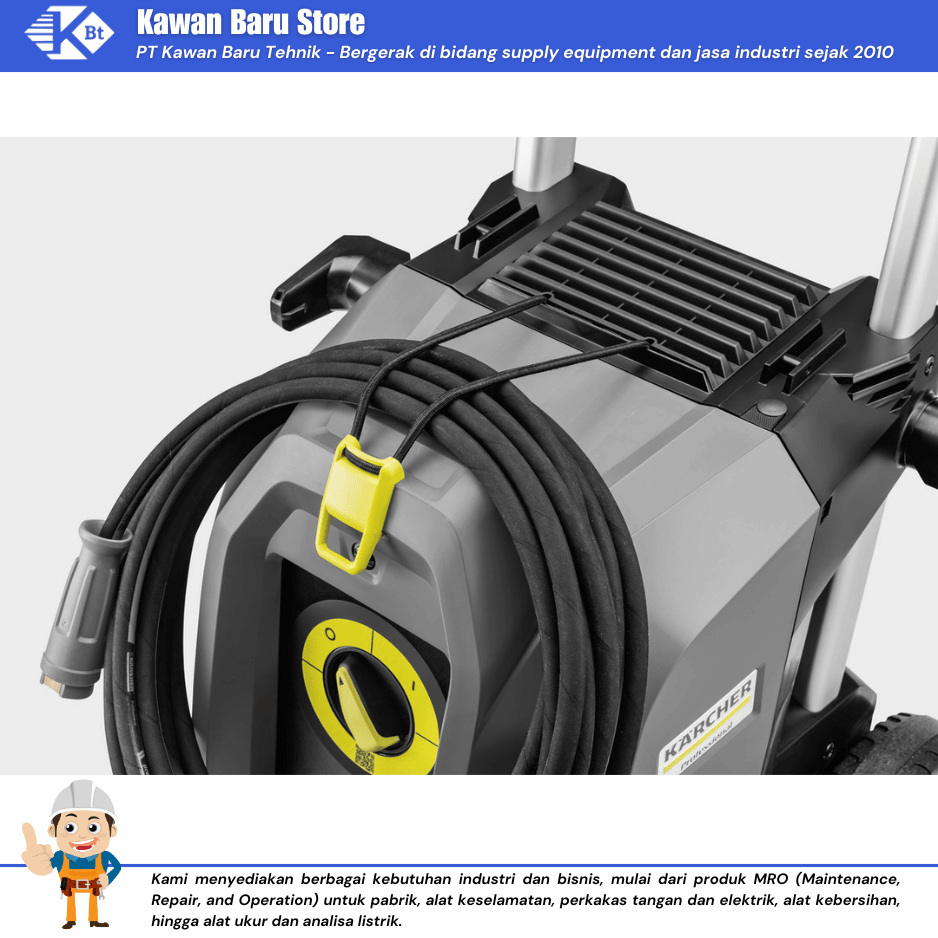

Storage for high pressure hose.
Specifications

Technical data:

Supply voltage (Ph/V/Hz) 3 / 376 – 424 / 50
Flow rate (l/h) 500 – 1000
Inlet temperature (°C) 60
Working pressure (bar) 80 – 250
Max. pressure (bar/MPa) 280 / 2,8
Connected load (kW) 8,8
Power cable (m) 5
Nozzle size 47
Water inlet 1″
Colour anthracite
Weight (with accessories) (kg) 70,3
Weight incl. packaging (kg) 78,6
Dimensions (L x W x H) (mm) 607 x 518 x 1063

Scope of supply:

Spray gun: EASY!Force Advanced
Spray gun with soft grip padding
High-pressure hose length: 10 m
High-pressure hose type: Premium quality
High-pressure hose specification: ID 8, 315 bar
Spray lance: 1050 mm
Power nozzle
Dirt Blaster
Servo control

Equipment:

4-pole, three-phase motor with air and water cooling
3-piston axial pump: With stainless steel pistons
Pressure switch-off

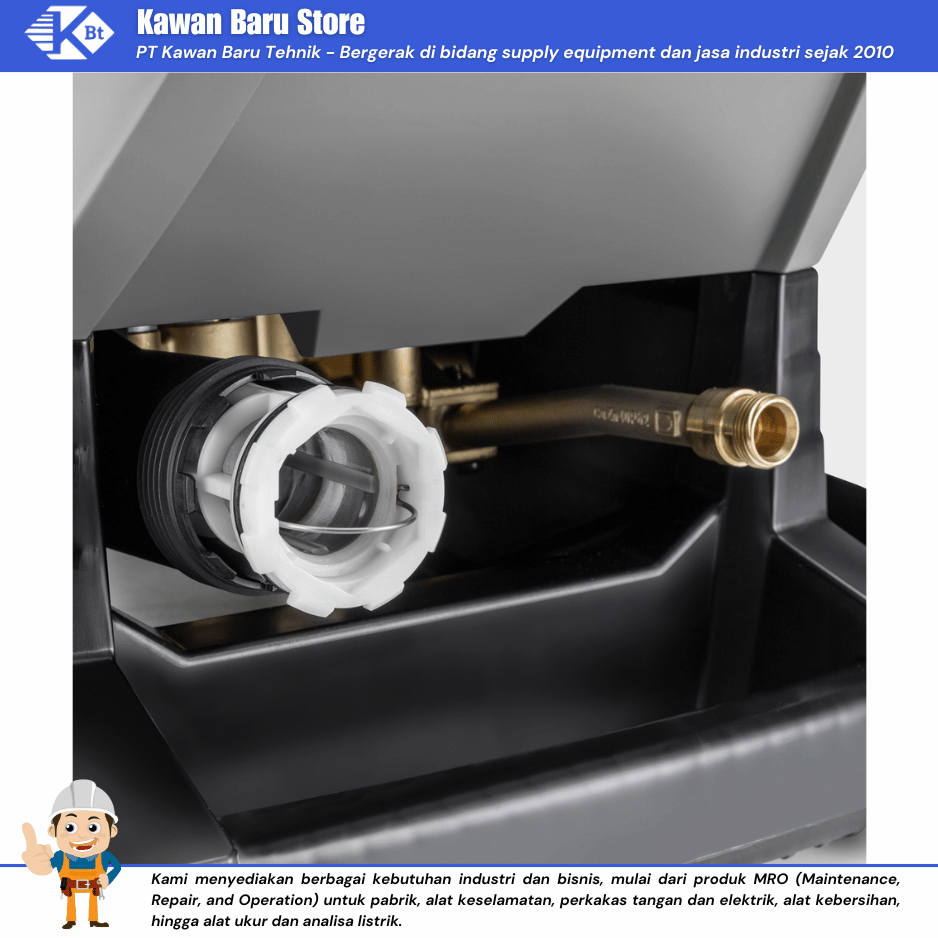

Integrated water fine filter
Oil level indicator
Brass water inlet
