INFRARED THERMOMETER FT3700, FT3701

Non-contact Infrared Thermometer – Sharply Focus on Measurement Spots with Two-Beam Laser Marker, Ideal for HVAC Applications

The FT3700 and FT3701 are non-contact thermometers using infrared rays, accurately pinpointing the spot with a two-beam laser marker. The infrared temperature guns identify the surface temperature of an object by measuring the energy level of the infrared rays emitted from the object without physically coming in contact with it.
For industrial use only. Cannot measure body temperature. The laser marker beams are very dangerous if it gets into your eyes.

Watch: How to Use the Hioki Infrared Thermometer FT3700/FT3701

Dapatkan Penawaran

Diskusi dan Tanya Harga
Hubungi CS

Key Features

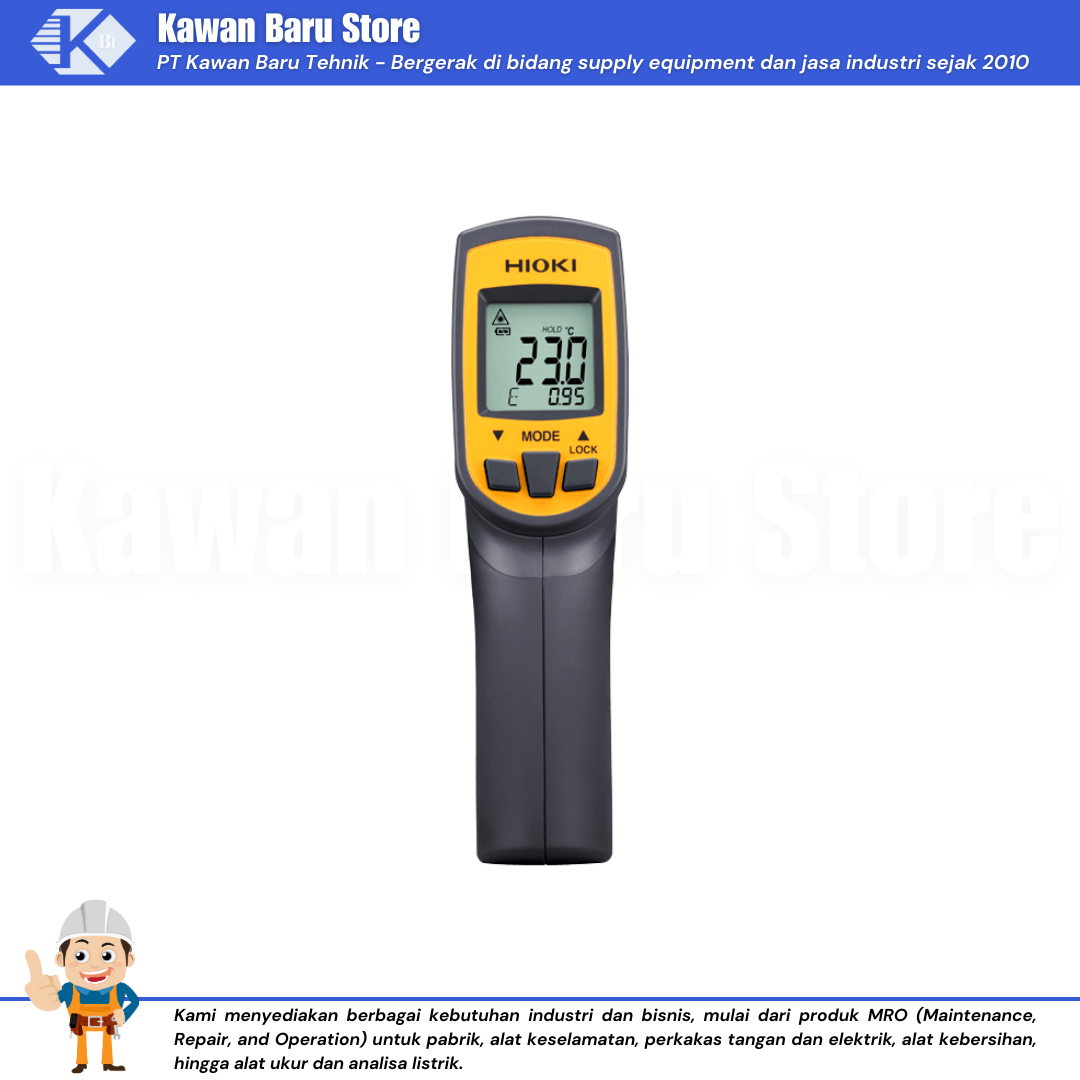

  • Pistol design with easy-to-see display
  • A full menu of basic measuring functions
  • Easily test in difficult locations, moving objects or where there is danger of electric shock

Model No. (Order Code)

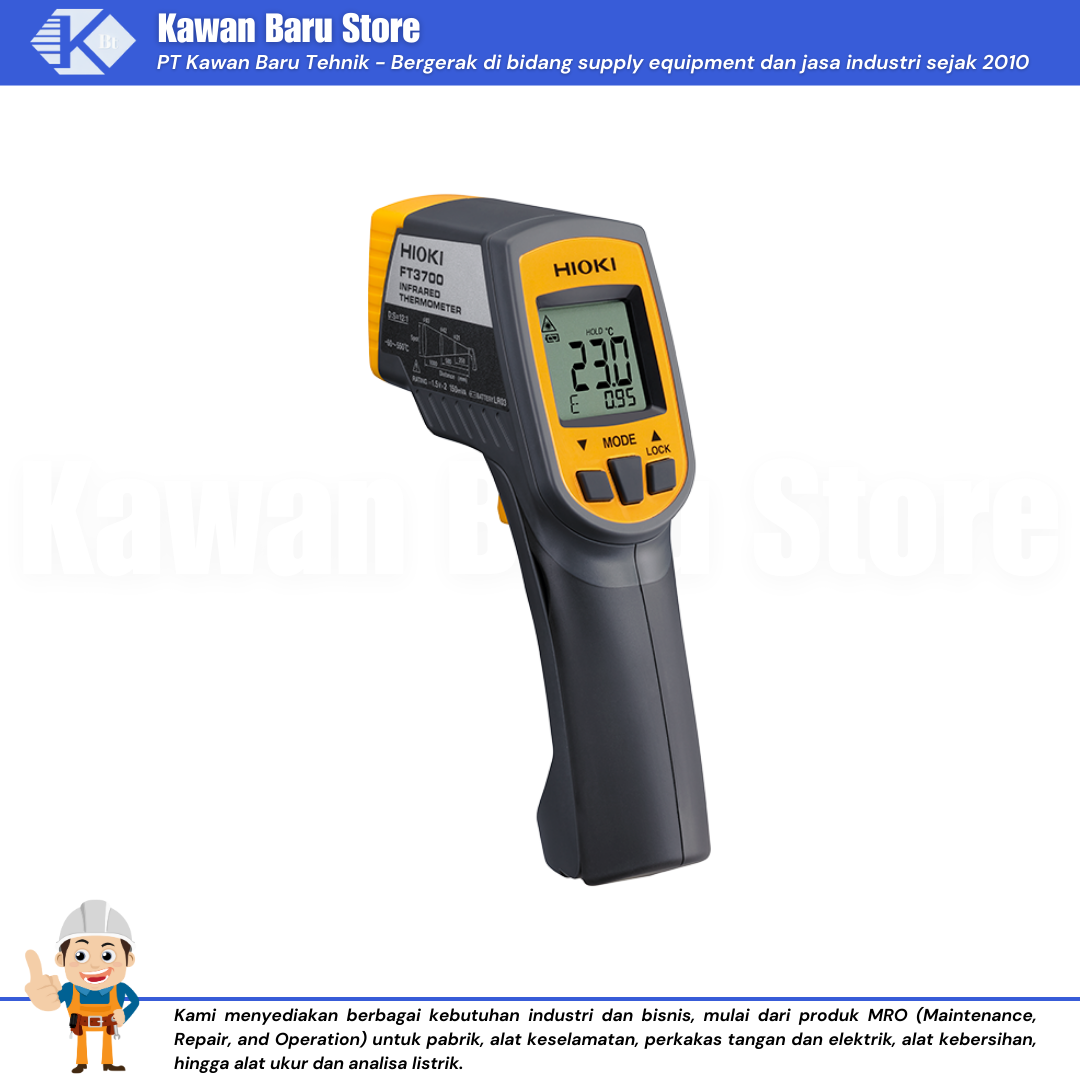

FT3700-20 Long-focus type

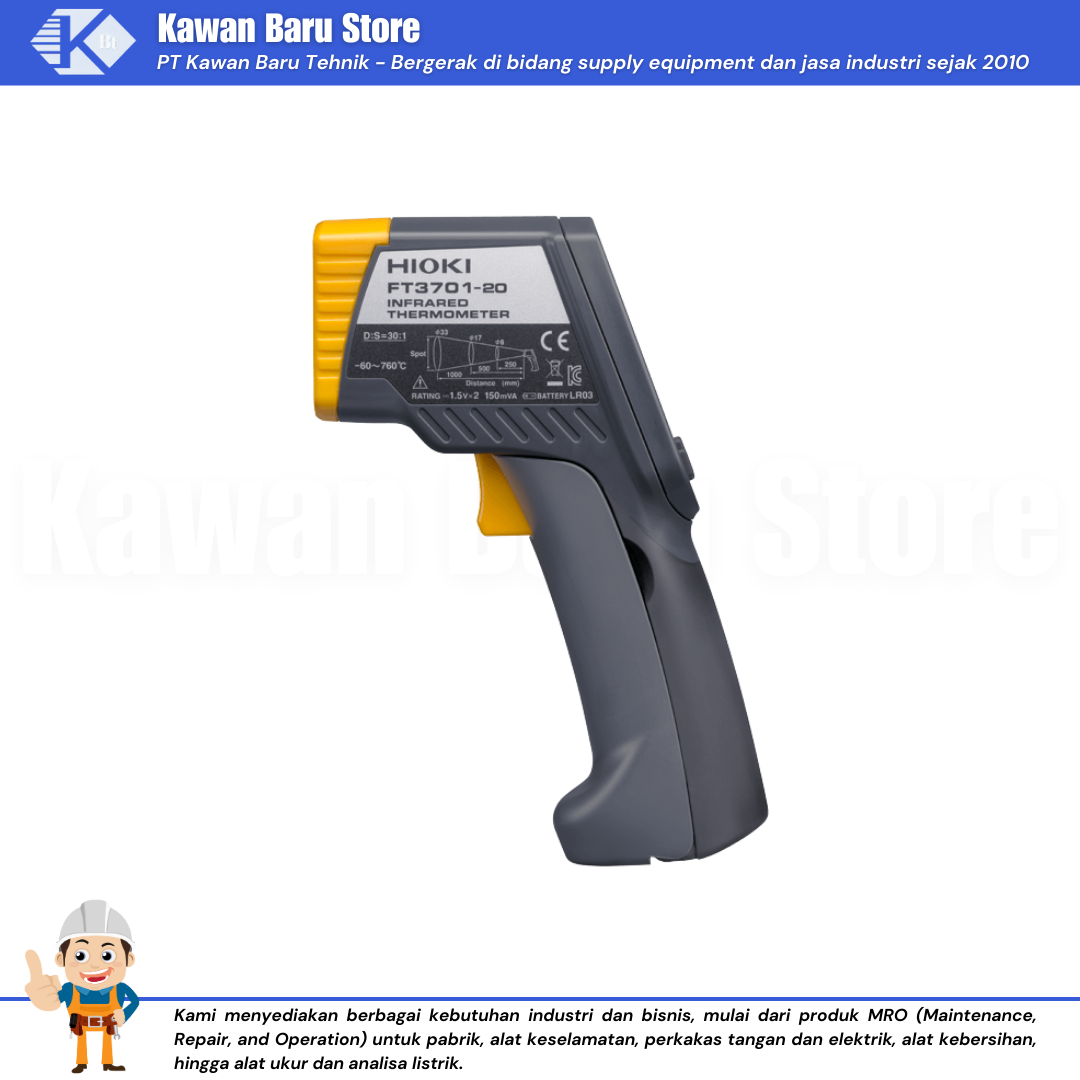

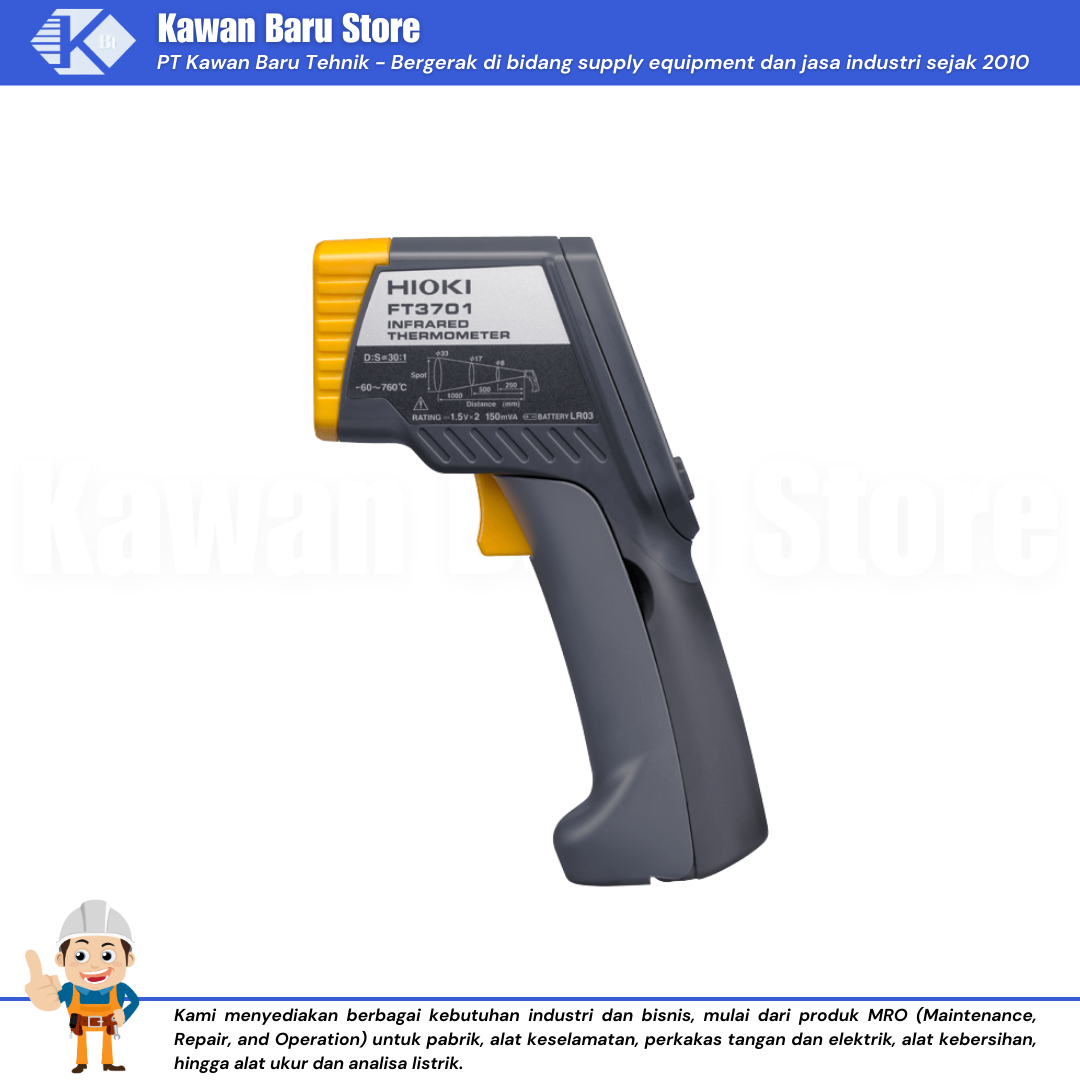

FT3701-20 Long focus, precise-field type

Basic specifications

Accuracy guaranteed: 1 year
FT3700-20 FT3701-20
Measurement temperature range -60.0˚C to 550.0˚C (-76˚F to 1022˚F), 0.1˚C resolution -60.0˚C to 760.0˚C (-76˚F to 1400˚F), 0.1 ˚C resolution
Accuracy -35.0˚C to -0.1˚C (-31.0˚F to 31.9˚F) : ±10 %rdg. ±2˚C
0.0˚C to 100.0˚C (-32.0˚F to 212.0˚F) : ±2˚C
100.1˚C to 500.0˚C (212.1˚F to 932.0˚F) : ±2% rdg.
Note: -60.0˚C to -35.1˚C (-76.0˚F to -31.1˚F), and over 500.1˚C (932.0˚F), Accuracy not specified
Response time 1 sec (90%)
Measurement wavelength 8 to 14 µm
Thermal emissivity compensation ε=0.10 to 1.00 (0.01 step)
Measurement field diameter ε=0.10 to 1.00 (0.01 step) φ 100 mm at 3000 mm (3.94 in at 9.84 ft)
(Distance : Spot = 30 : 1)
Sighting Two-beam laser marker Max 1 mW (class 2), Red
Functions Continuous measurement mode, MAX/ MIN/ DIF (MAX – MIN)/ AVG measurement, Alarm, Backlight, Auto power-off
Power supply LR03 (AAA) alkaline battery ×2, 150 mVA, Continuous use of 140 hours (With laser marker, backlight and buzzer are OFF)
Dimensions and mass 48 mm (1.89 in) W × 172 mm (6.77 in) H × 119 mm (4.69 in) D, 256 g (9.0 oz), (including batteries)

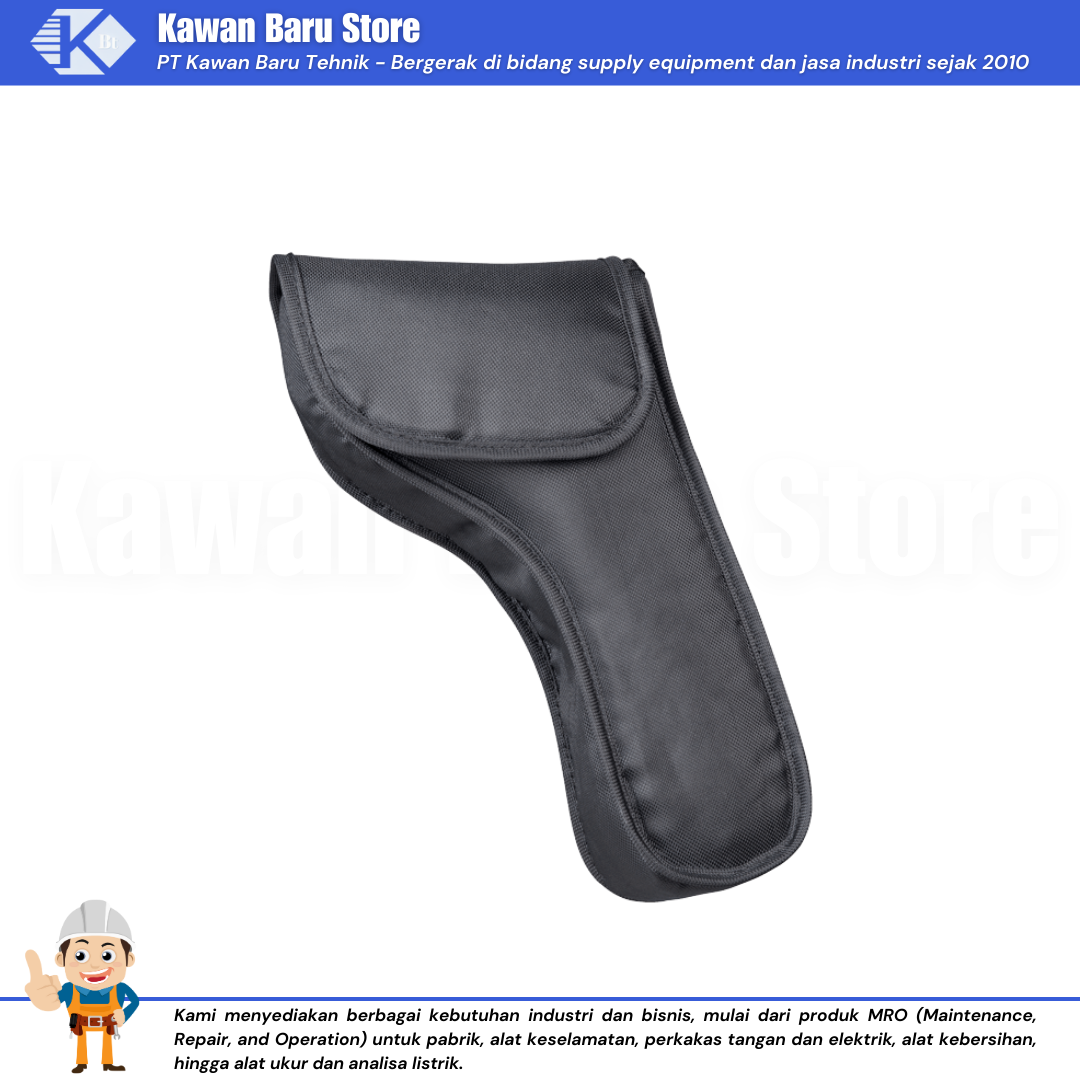

Included accessories Instruction manual ×1, LR03 alkaline battery ×2, Carrying case ×1
