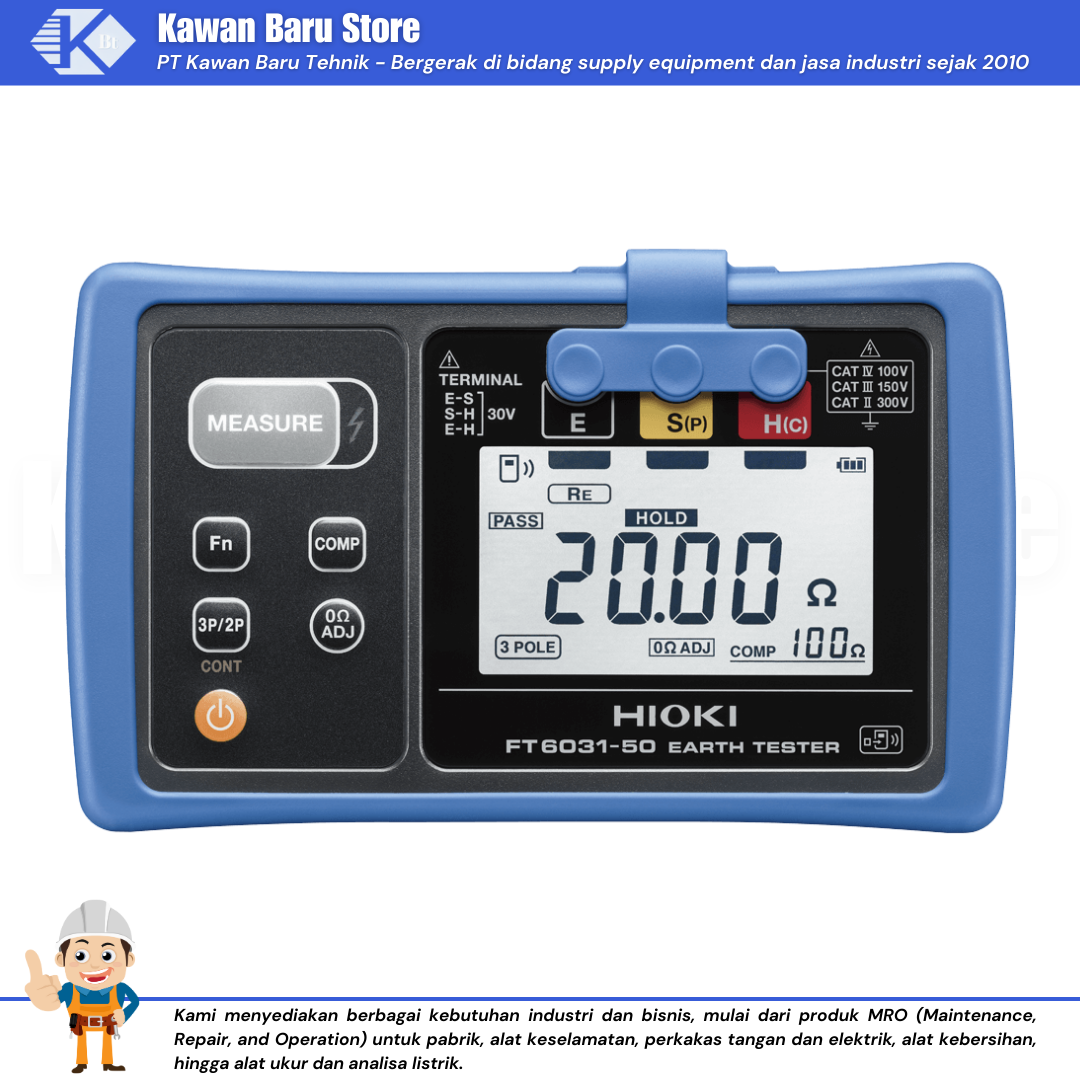

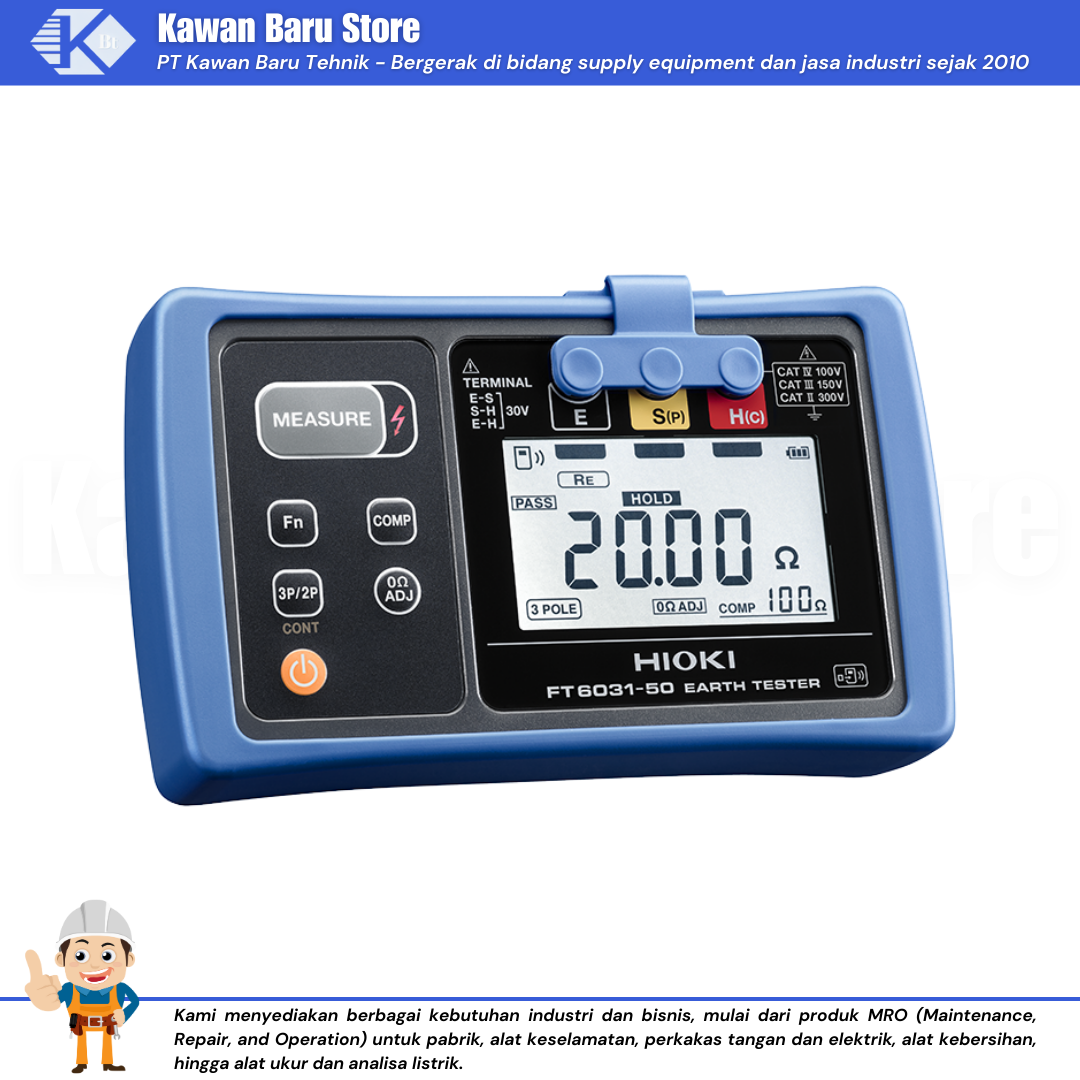

EARTH TESTER FT6031-50

Tough and Ready for the Field
IP67 Dustproof and Waterproof

Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as prevent damage to equipment. The FT6031-50 is a IP67 dustproof and waterproof two-pole or three-pole ground resistance tester with large, easy-to-read display, highly sensitive earthing rods, and innovative cable winder that significantly reduces the amount of time needed to complete earth resistance tests.

CAT IV 100 V, CAT III 150 V, CAT II 300 V

Dapatkan Penawaran

Diskusi dan Tanya Harga
Hubungi CS

Key Features

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • Excellent noise resistance
  • IP67 protected – top of the industry
  • Test all ground types from Class A to Class D with a single meter
  • Wide 0Ω to 2000Ω measurement range
  • Minimize cabling time with innovative earthing rods and cable winder

Basic specifications

Accuracy guaranteed: 1 year
To ensure safety, use the optional Test Lead L9787 when making measurements using the two-electrode method.
Measurement system Two-electrode method/three-electrode method (switchable)
Measurement range 20 Ω (0 Ω〜20.00 Ω) 200 Ω (0 Ω〜200.0 Ω) 2000 Ω (0 Ω〜2000 Ω)
Accuracy ±1.5% rdg ±8 dgt ±1.5% rdg ±4 dgt ±1.5% rdg ±4 dgt
Earth voltage 0〜30.0 V rms
Accuracy: ±2.3% rdg ±8 dgt (50 Hz/60 Hz), ±1.3% rdg ±4 dgt (DC)
Allowable earth potential 25.0 V rms (DC or sine wave)
Dustproof and waterproof IP65/IP67 (EN60529)
Power supply LR6 Alkaline battery ×4, Possible number of measurements: 500 times (measurement conditions: three-electrode method, measuring 10 Ω at 10-second intervals without Z3210 installed)
Functions Live wire warning, zero-adjustment, continuous measurement mode, wireless communication (only when Z3210 is connected), and comparator
Dimensions and mass 185 mm (7.28 in)W × 111 mm (4.37 in)H × 44 mm (1.73 in)D, 570 g (20.1 oz.) (including batteries and protector, excluding terminal covers and other accessories)

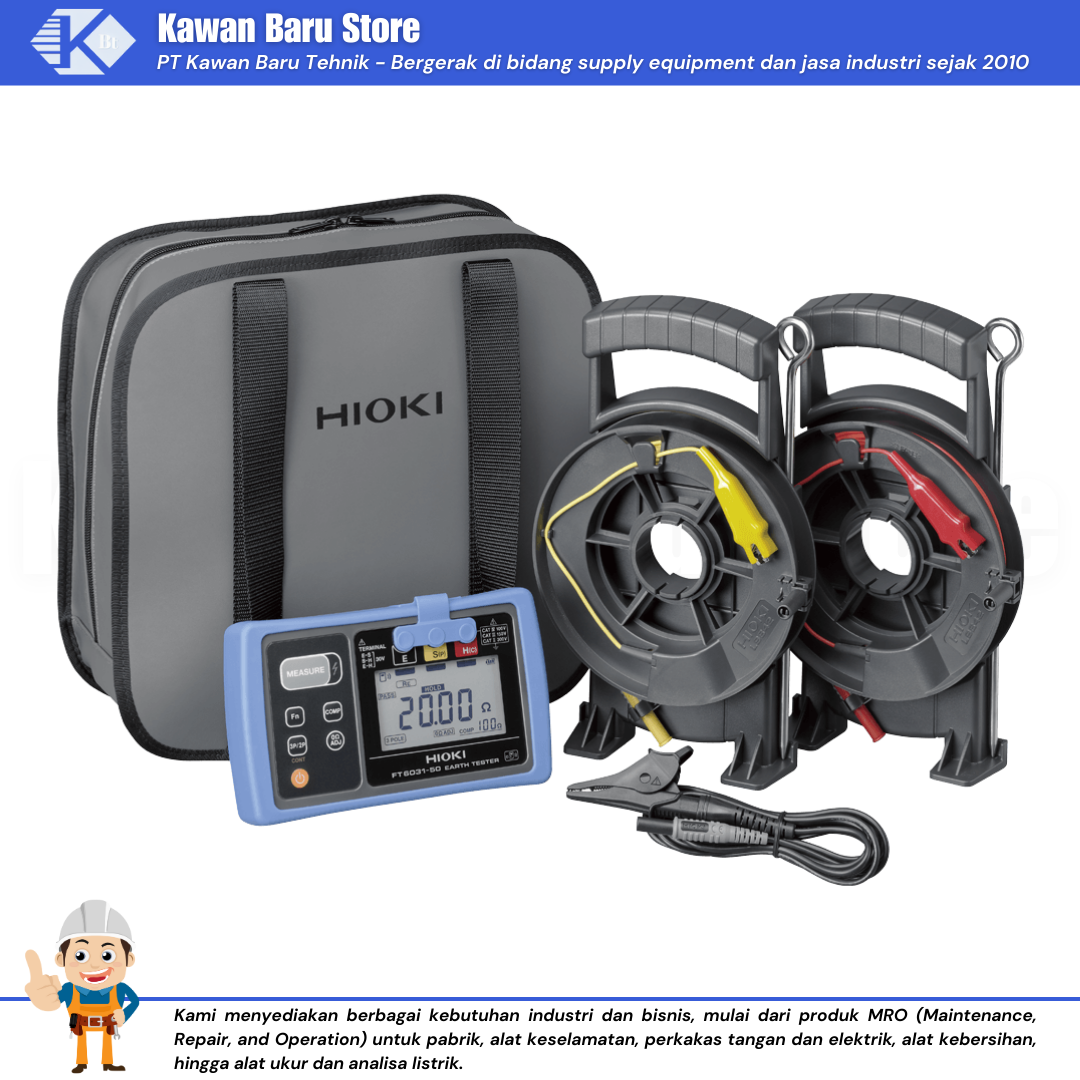

Included accessories Auxiliary Earthing Rod L9840 (2 piece set) ×1, Measurement Cable L9841 (black 4 m) ×1, Measurement Cable L9842-11 (yellow 10 m, equipped with winder) ×1, Measurement Cable L9842-22 (red 20 m, equipped with winder) ×1, Carrying Case C0106 ×1, Protector ×1, LR6 Alkaline battery ×4, Instruction manual ×1
